CHEVELLE!    For Shipping Address Click on Main Page  THE TACHMAN!

---

PLEASE DO NOT CALL TO SEE IF I HAVE ADDITIONAL DIAGRAMS AS I DO NOT.  WHAT YOU SEE LISTED HERE IS WHAT I HAVE.  THANKS, TACHMAN!

---

---

---

---

---

---

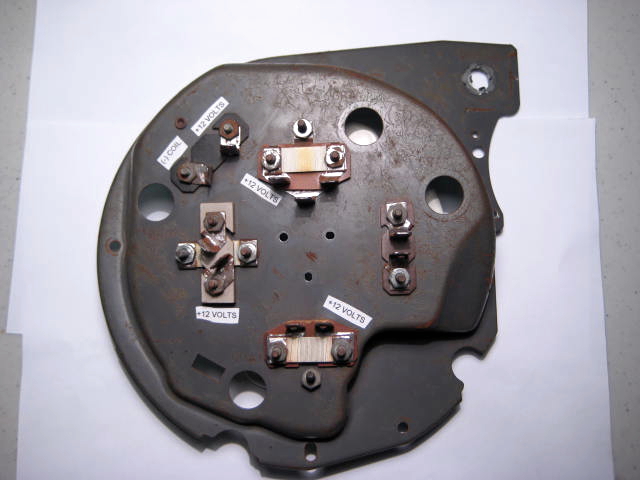

1969 CHEVELLE BACK VIEW LABELED TO HOOK UP 12 VOLTS, OTHER TERMINAL IS TO SENDING UNIT.  TACH HOOKUP SEEN AS WELL!

---

---
